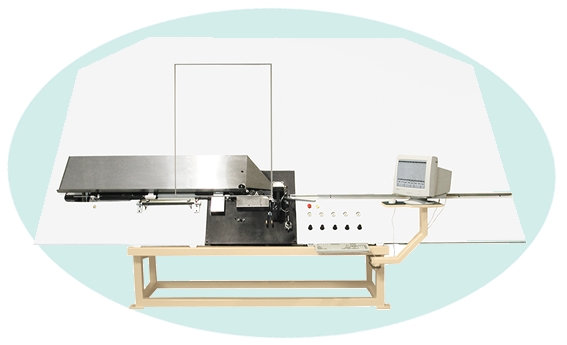

Automatic
Spacer Bender |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
All
Bend Model 200 & 300
Features
and Benefits |

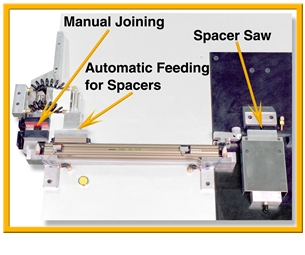

Detail
of Automatic Joining System |
|
The
only benders that bends any material
Accepts any material size
No Tool changing required (on Model 300)
Double roller for greater accuracy
5/1000" tolerance, up to 1/64" on the length
Produces 3 & 4 Corner Bends
Makes a 40" X 70" frame in 28 seconds
Laser referencing
All parts are U.S. sourced
Designed for Integrated Production |
|
|
All
Bend 200 and 300 Standard Features |
|
Automatic
in-stock feed
Manual Joiner Clamp for Spacers Corner Projection
17" SVGA touch screen monitor, mouse and keyboard
Fuzzy Logic for diagnostics
Detailed maintenance |
|
|
|
|
Options |
|
|
Automatic
Programmable Gas Drilling
Automatic
Programmable Muntin Grid Hole
Single
or Double Hole Drilling
Software
for Batching (multiple views available) |
Software
is available on floppies with networking capability
Inex
Plastic Spacer Bending Configuration (220 volts)
Ink-jet
Printer |
|
|
|
|
|
|
|
|
|
|
